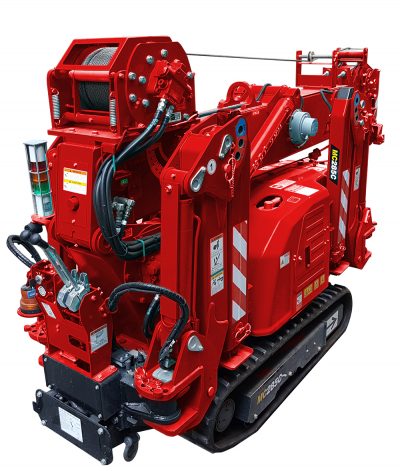

MC285C-3 Mini Crawler Crane

Maeda MC285C-3

The MC-285C-3 mini crawler crane is the ideal equipment for projects with limited access. Thanks to its compact size, this crane can fit through a standard size door, allowing it to access even the most confined spaces.

This crane has impressive capabilities. It has a crane capacity of 2.82t X 1.4m, and a max working radius of 8.205m X 0.15t. Additionally, it can lift loads up to a max height of 8.7m on the ground and -10.1m (4 falls) underground. These features make it perfect for a wide range of projects, from construction sites with limited space to underground projects that require heavy lifting.

With the MC-285C-3 mini crawler crane, you can expect high performance and efficiency, no matter the project.

MC285C - 3 Attachments

Auxiliary Winch (optional)

Capacity 900kg, Reach 100m Fall

Searcher Hook

The Searcher Hook can be used to lift loads that have limited headroom.

Single Fall Hook

The Single Fall Hook allows the crane to be rifted into one fall configuration, allowing for more wire rope length.

Paddle Lever Radio Remote Control

The Paddle Lever Radio Remote Control allows the operator to have more visibility of lifting operations whilst maintaining full control.

Glass Vacuum Lifter 320 Kg Inline

Our Glass Lifter has a Working Load Limit for flat glasses of 320 kg.

Glass Vacuum Lifter 635kg Inline

Our Glass Lifter has a Working Load Limit of 320 kg (4 suction pads) / 635 kg (8 suction pads).

Glass Vacuum Lifter 800kg Spider

The Glass Lifter has a Working Load Limit for flat glasses: 400/600/800 kg (4/6/8 suction pads Ø 400 mm).

Technical Information

Technical Dimension

Additional information

Technical Information

Technical Dimension

Additional information

Get in touch with us to rent the equipment you require and discover the full scope of our services.

MC285-3 Mini Crawler Crane - Technical Data

OUTRIGGER EXTENDED TO MAXIMUM

2.535m/4.075m Boom		5.575m Boom		7.075m Boom		8.575m Boom
Working radius(m)	Rated total load(Kg)	Working radius(m)	Rated total load(Kg)	Working radius(m)	Rated total load(Kg)	Working radius(m)	Rated total load(Kg)
1.4 or less	2820	3.0 or less	1220	3.6 or less	820	4.0 or less	550
1.5	2520	3.5	970	4.0	740	4.5	400
2.0	1920	4.0	780	4.5	580	5.0	340
2.5	1570	4.5	630	5.0	480	5.5	300
3.0	1220	5.0	530	5.5	430	6.0	270
3.5	970	5.205	530	6.0	380	6.5	230
3.705	920			6.5	350	7.0	200
				6.705	330	7.5	180
						8.0	150
						8.205	150

OUTRIGGER EXTENDED TO OTHER THAN MAXIMUM

2.535m/4.075m Boom		5.575m Boom		7.075m Boom		8.575m Boom
Working radius(m)	Rated total load(Kg)	Working radius(m)	Rated total load(Kg)	Working radius(m)	Rated total load(Kg)	Working radius(m)	Rated total load(Kg)
1.5 or less	1720	3.0 or less	510	3.6 or less	400	4.0 or less	330
2.0	1070	3.5	410	4.0	330	4.5	280
2.5	630	4.0	330	4.5	280	5.0	230
3.0	520	4.5	280	5.0	230	5.5	180
3.5	390	5.0	200	5.5	180	6.0	160
3.705	350	5.205	200	6.0	160	6.5	130
				6.5	130	7.0	100
				6.705	120	7.5	80
						8.0	70
						8.205	60

IMPORTANT

* The Rated Toal Load Chart is based on actual working radius including boom deflection.

* The weight of hook block (standard 4 fall / 2 fall-30kg) must be included as part of the load shown in the Rated Total Load Chart.

* When using two falls hook or single fall hook, use the appropriate four falls Rated Total Load Chart shown above but with a maximum load of: -1410kg for two falls and -710kg for single fall.

SPECIFICATIONS
MC285C-3 Mini Crawler Crane

MODEL		MC285-3
Crane capacity		2.82t x 1.4m
Max.working radius		8.205m x 0.15t
Max.lifting height (on the ground)		8.7m
Max.lifting height (underground)		-10.1m (4 falls)
Max.lifting height (underground) (optional auxiliary winch)		-100m (single fall)
Winch system	Hook speed	9.3m/min (4 layers, 4 falls)
	Hoist wire rope	IWRC 6 x Fi (29) 0/0, ø7 x48.0m
Telescoping system	Boom length	2.535m ~ 8.575m
Outrigger system	Max.extended width (between outside of OR adaptors)	(Lateral) 4,782mm X (Front) 4,718mm X (Rear) 3,990mm
	Type	Hydraulic motor driven, stepless speed changer
	Travel speed	0 - 2.2km/h
	Gradability	20deg
	Crawler ground length x width	975 x 200mm
	Ground pressure (MC285CWM-3)	50.0kpa (0.510kgf/cm²)
	Ground pressure (MC285CWME-3)	54.3kpa (0.554kgf/cm ²)
Engine (diesel)	Mode	YANMAR 2TNV70-NMB
	Displacement	569cc (0.569L)
	Rated output	7.4kw [10.1ps]/2,500 rpm
	Starting method	Electric Starting
	Fuel/Fuel tank capacity	Diesel / 12.0L
Motor (MC285CWME-3)	Motor Model	IKKH-FBK8G-4P-5.5kw
	Motor type	Totally enclosed fan-cooled motor 5.5kw, 4P 380V
Remote control system	Type	Radio & paddle type control
Overall length X width X height (MC285CWM-3)		2,800mm X 750mm X 1,470mm
Overall length x width X height (MC285CWME-3)		3,285mm x 750mm X 1,470mm (Detachable E-motor)
Machine weight (MC285CWM-3)		1,990kg (2,160 with Aux winch)
Options		White rubber tracks, Single fall hook, 850kg searcher hook, 900kg auxiliary winch
